Providing complete window solutions, from initial design to production and final installation of window systems for both home and commercial use, ENCRAFT systems are number one in styling and a benchmark for engineering precision. ENCRAFT systemsgpme in a range of shapes and sizes, are custom designed to suit the local requirements, fabricated to exact dimensions and fitted-to-suitthe particular requirement options. Be it any design or specification, ENCRAFT has a solution - of style and elegance to meet all expectations.

Windows Doors Color Collection

WINDOWS

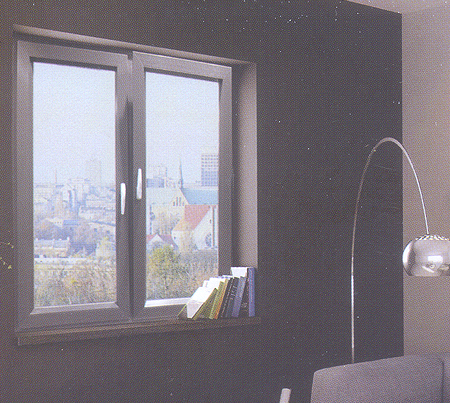

Casement Window

ENCRAFT Casement Window range are designed to provide the maximum flexibility for fabricators and clients alike. The system is based on a two profile depths - 42 and 62 mm and was designed to facilitate maximum application coverage with the minimum number of profile sections providing fabricators and clients at the same time with the ideal range of products to suit any window replacement program or building type in the fast growing construction industry.

Features

Contemporary modern soft line profile appearance
10 mm sash overlap for enhanced performance
Internal glazing options from 4 mm single to 36 mm triple
Choice of single or multi - point locking devices • Build -in hardware location facilityfor hinges, striker etc
Secure hardware fitting into steel reinforcements as standard

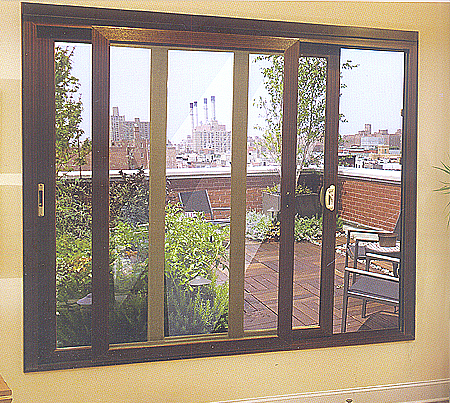

SLIDING WINDOW

ENCRAFT Sliding Window range are designed to provide the maximum flexibility for fabricators and clients alike. Based on a range of sections, it offers full flexibility offeringfrom single sliding to multiple sliding openers, clip on or integrated sections for fly screen and a range of section sizes covering small and large openings. It provides the ideal range of products to suit any window replacement program or buildingtype in the fast growing construction industry.

Features

One, two and three track sliding, window and fly screen options
Multi - chamber profile design, frame depth from 62 to 112 mm
10 mm sash overlap for enhanced performance
Internal glazing options from 4 mm single to 22 mm double
Choice of single or multi - point lopking device
Hardware componentsfastened into steel or 3 walls or Upvc

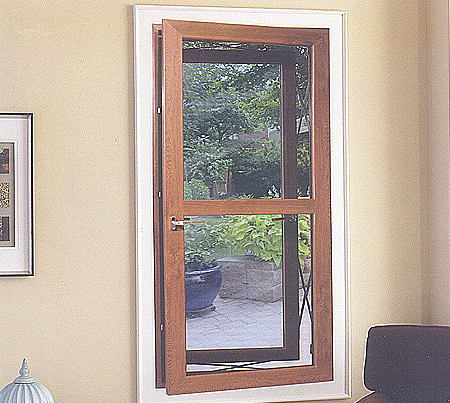

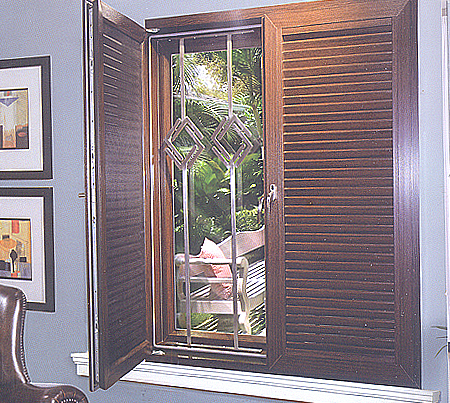

TWIN SASH WINDOW

ENCRAFT TwinSash Windows are designed to provide ultimate flexibility for fabricators and clients alike. It provides the option of combining the traditional casement window with traditional inward opening fly screen option. There is a facility to incorporate a security grill or blinds for security or privacy. It also offers an additional variant of sash with integrated louvers with fly screen option. It was designed to facilitate maximum application coverage with the minimum number of profile sections providing fabricator and at the same time the end user with the ideal range of products.

Features

Contemporary modern soft line profile appearance
Design compatibility with the EN casement and sliding range
10 mm sash overlap for enhanced performance Integrated solution for security grill and fly screens
Choice of single or multi - point locking devices
Secure hardware fitting into steel reinforcements as standard

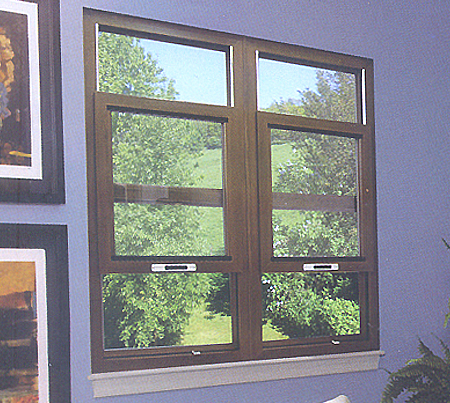

VERTICAL SLIDER WINDOW

ENCRAFT Vertical Slider Windows, a traditional fenestration concept that has become the perfect solution for ancillary frames when the opening aperture is taller than width i.e. reference golden ratio 1: 1.618, and when one opening sash is required for ventilation and/or fire escape! Its simple operation is based on a pair of frame specific, site tensioned, spiral balances that can hold the sash open in any position. The spiral balance technology has successfully replaced the traditional weights and pullies method because of requiring less space enabling the modern uPVC vertical slider to fit perfectly into both aperture types, straight through or reveal.

Features

Contemporary modern Softline appearance
10 mm sash overlap for enhanced performance
Internal glazing option from 4 mm singip to 22 mm double
Integrated handle bead for ease of operation
Special spiral balances made to suit sash weight and frame size
Opening sash secured with espagnolette locking device

TILT N TURN WINDOWS

ENCRAFT Tilt N Turn Windows are designed to provide a European window option for fabricators and clients alike. The window is available as part of the EN62 range and was designed to give the discerning end user a state of the art inward opening fenestration solution. The ENCRAFT Tilt N Turn provides the client maximum design freedom due to larger opening sizes that can be achieved and suits any window replacement program or building type in the fast growing construction industry.

Features

Contemporary modern soft line profile appearance
9 mm sash overlap for enhanced performance
Internal glazing options for 4 mm single to 36 mm triple
Concealed heavy duty hinges and multi - point locking as standard
External slidingfly screen system
Secure hardware fitting into steel reinforcements as standard

PARALLEL WINDOWS

ENCRAFT Parallel Windows are designed for maximum ventilation and ideal for staircases, landings and offices. With a maximum sash size of 2 metres (6.6 feet) wide and 2 metres (6.6 feet) tall it caters for large openings, giving plenty of light to the area. With a weight carrying capacity of 200kg per sash the glazing options are almost limitless. There is a facility to incorporate a security grill or blinds for security or privacy.

Features

Can be inward or outward opening
Glazing options from 4 mm single to 36mm triple
Internal sash options with fly screen or glazed as above
Integrated solution for security grill
3 frame options to choose from
Multi point locking devices

FOLD & SLIDE WINDOW

ENCRAFT Fold N Slide Windows system offers superior operating performance and smooth integration into any architectural style and space. The window system is engineered to using multiple looking and with 2 to 6 panels the system offers unobstructed opening options. The hardware used offers a smooth glide and reliable performance with solid design and engineering.

Features

Can be opening in or out
2, 3, 4, 5 and 6 pane option
Dedicated ENCRAFT top guide and bottom track to ensure perfect alignment
Internal glazing option from 4mm single to 36mm triple glazing
Frame width of up to 18'8" can be achieved with a maximum height of 9 ' not exceeding a sash weight of 100 kgs

DOORS

Tilt N Slide Doors

ENCRAFT Tilt N Slide Doors offer the ultimate in protection for your home. The European concept of tilting and sliding the door sash allows the provision of a dual compression seal and provides the maximum ventilation and glass area. The dual compression seal gives excellent insulation from sound and dust alike

Features

Contemporary modern soft line profile appearance
Double Compression seals protect against draught, dust & water
9 mm sash overlap for enhanced performance
Internal glazing optionsfrom 4 mm single to 36 mm triple
Multi-point perimeter locking and heavy dutytandem rollers as standard
Secure hardware fitting into steel reinforcements as standard

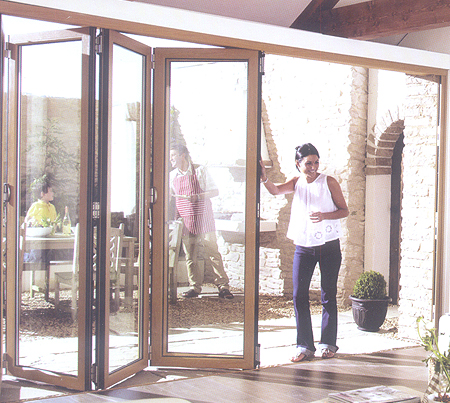

Fold N Slide Doors

ENCRAFT Fold N Slide Doors system provides superior operating performance and smooth integration into any architectural style and space. The door system is engineered using high quality uPVC Window and Door profiles and superior hinge and locking systems that are reliable and secure. The rollers along which the doors slide, offer a smooth glide and reliable performance with solid design and expert engineering.

Features

Contemporary modern Softline appearance
9 mm sash overlap for enhanced performance
Internal glazing option from 4 mm single to 36 mm double
Multi-point perimeter locking devices as standard
Heavy duty tandem rollers for smooth
operation Secure hardware fitting into steel reinforcements as standard

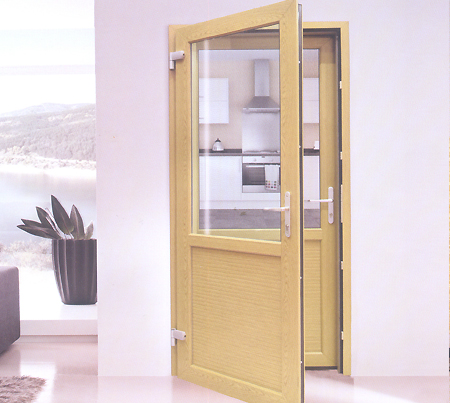

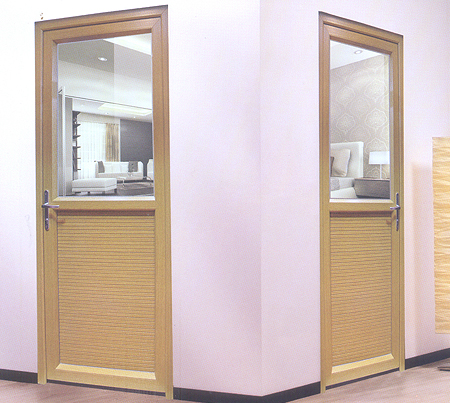

Casement Doors

ENCRAFT Single or Double Casement Doors, suitable for opening-in and opening-out mode, can be used as main entrance door or as ancillary door leading onto corridors, Patios or balconies. Casement doors are available in 62 mm or 112 mm profile depth, can be manufactured as stand-alone items or part of a screen incorporating fan lights and/or side lights. Double doors also known as French doors can be used as an alternative to sliding Patio doors, especially, when a clear wide opening is being desired.

Features

Contemporary modern Softline appearance
9 mm sash overlap for enhanced performance
Internal glazing option from 4 mm single to 36 mm double
Choice of numerous multi-point locking devices including full perimeter locking
Threshold-less or Aluminium low threshold • Choice of hinge types including concealed (invisible) hinges

Twin Sash Doors

ENCRAFT TwinSash Doors are probably the most ingenious door invented in India comprising two independently operated door sashes, one sash opening-out for mosquito screen and one sash opening-in for glazing. However, some parts of India may only require one sash equipped with mosquito screen whilst the second sash houses fixed or adjustable louvres. TwinSash doors can utilise ENCRAFT's two dedicated, door sashes and wide range of locking devices. For today's requirement, the ultimate TwinSash door comprises an external mosquito screen with a high performance double glazing unit incorporating blinds

Features

152 mm outer frame depth with 56 mm available space between sashes
9 mm sash overlap for enhanced performance
Internal glazing option from 4 mm single to 36 mm double
Possibilityto combine mosquito screen, panel, louvres and glass within one unit
Choice of locking devices and hinge types includingconcealed (invisible) hinges
Threshold-less

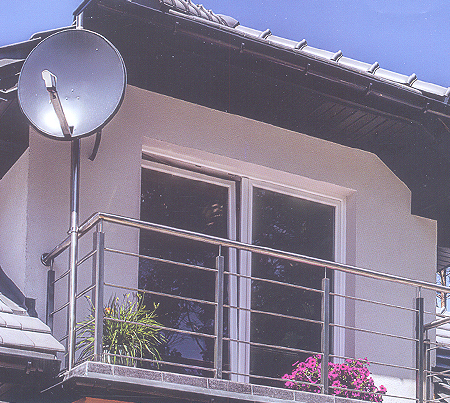

Balcony Doors

ENCRAFT Balcony Doors are intended to provide more glass area due to an overall, slimmer frame sight line and are available as either single or double doors (French doors), opening-in or opening-out, and are offered with one operating handle by design which is positioned inside. A special handle and a concealed snap-in device enables a temporary closing of the door when outside. Balcony doors can be stand-alone items or manufactured with fan lights and/or side lights or integrated into complete curtain walling screens.

Features

Contemporary modern Softline appearance
9 mm sash overlap for enhanced performance
Internal glazing option from 4 mm single to 36 mm double
Choice of numerous multi-point locking devices including full perimeter locking
Threshold-less or Aluminium low threshold
Choice of hinge types including concealed (invisible) hinges

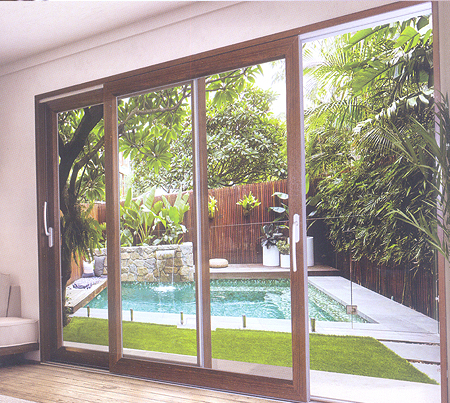

Lift N Slide Doors

ENCRAFT, the leading fenestration brand in the country, has given innovative fillip to traditional sliding and the result is - Lift n Slide Doors which are designed for larger openings for unobstructed views. By rotating the handle 180° the door fully lifts off its seals. ENCRAFT'S hallmark engineering precision ensures ease of function in both operations, that is, sliding and lifting.

Easy handling due to perfectly aligned system technology
Double compression seals protect against draught, dust & water
Internal glazing options from 4 mm single to 36 mm triple
Heavy dutytandem rollers for smooth operation
Secure hardware fitting into steel reinforcements as standard
Energy saving due to excellent thermelVroperty

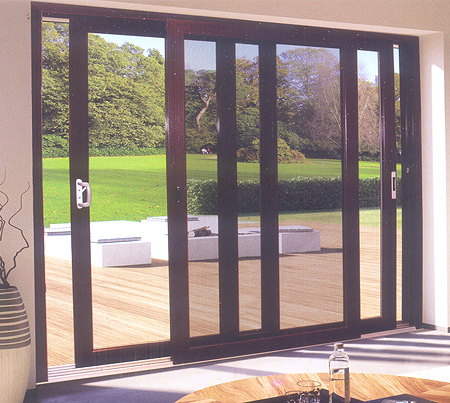

Heavy Duty Patio Doors

Modern frame apertures are getting bigger and the demand for more glass and less vertical divisions by frame members is also increasing. ENCRAFT's Heavy Duty Patio Doors can comply with those new challenges with its 2- pane version which can be manufactured up to 5.8 meters wide and up to 3.0 meters tall, accepting a maximum sash weight of 300 kg. The overall outer frame depth of 142 mm housing two 62 mm deep sashes is perfectlysuited for modern straight through apertures. The effortless operation of the heavy sash (es) is achieved by using tandem rollers with a high weight carrying capacity, ENCRAFT's solid Aluminium threshold construction and a good gripping D-handle, anchored into the concealed sash steel.

Features

Available options 2-track (142 mm depth), 3-track (222 mm depth) and 4-track (302 mm)
Unique Aluminium low threshold option for 2-track, 3-track and 4-track
Internal glazing option from 4 mm single to 36 mm double
Aluminium interlock for added rigidity equipped with double seal
Heavy-duty tandem roller and multi-point lock as standard

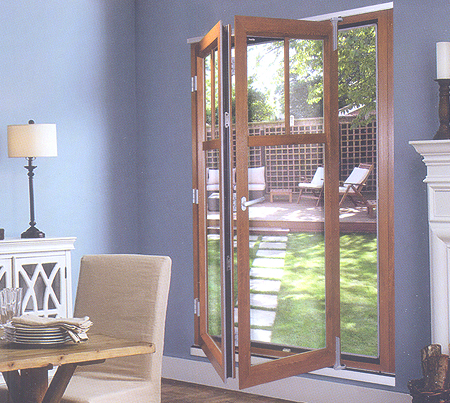

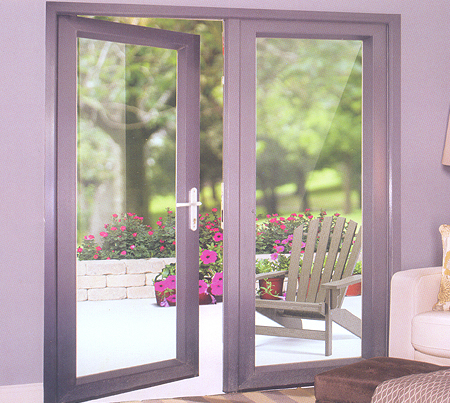

French Doors

ENCRAFT French Doors, also known as double doors or double windows, are a pair of glass doors usually opening from the back of a house into its garden or onto its balcony. This concept of opening both sashes fully without seeing a centre obstruction has influenced French architecture since the 17th century. The whole grace and dignity of many European buildings was based on this majestic design principle. Modern fenestration adopted the uniqueness of French doors and French windows, mainly upgrading the design for high performance glazing and sophisticated locking devices whilst retainingthe original character.

Features

ENCRAFT casement sashes are suitable for French doors and French windows
Available in opening-out and open-in mode
Internal glazing option from 4 mm single.to 36 mm double
Choice of numerous multi-point locking devices includingfull perimeter locking
French doors are available threshold-less or with Aluminium low threshold
Choice of hinge types including concealed (invisible) hinges

Low Threshold Doors

High performance in terms of air and water tightness, dust, insects, sound reduction requires sealing of the full sash perimeter. Any low threshold or threshold-less arrangement will compromise the performance aim but traditional living habits combined with ergonomics are today's overriding factors for fenestration. ENCRAFT is offering, wherever possible, Aluminum low threshold solutions or provide suggestions on how to prepare ground levels to hide the unwanted, high frame upstand associated with Fold & Slide Patio Doors and Tilt & Slide Patio Doors. ENCRAFT has chosen purposely Aluminum thresholds with silver anodised finish to provide a hard-wearingfoundation for years of product durability.

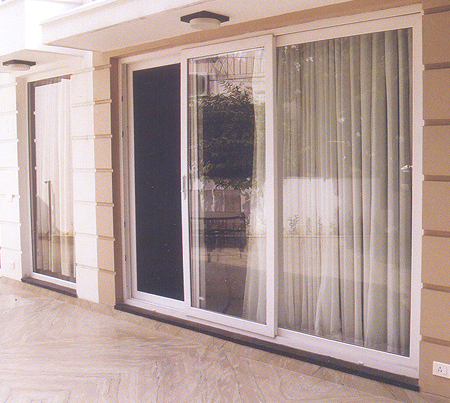

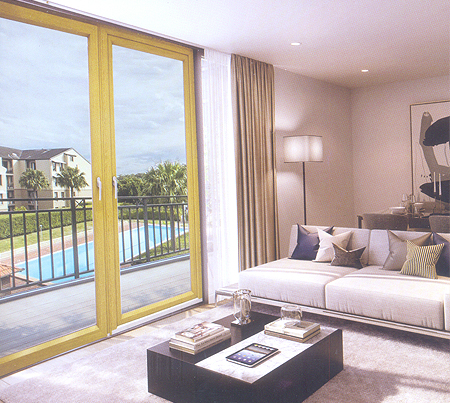

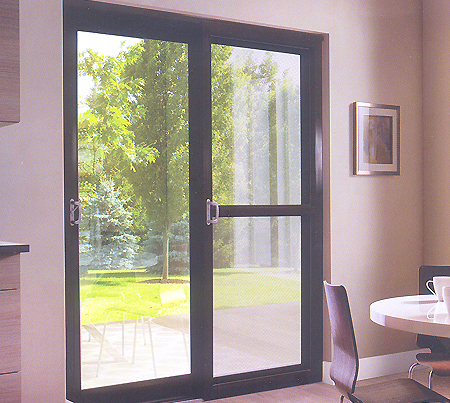

Sliding Doors

ENCRAFT Sliding Doors range covering frame depths from 62mm to 142mm is designed to provide the maximum flexibility for fabricators and clients alike. Based on a range of sections, it offers full flexibility from single sliding to multiple sliding openers, clip on or integrated sections for fly screen and a range of section sizes coveringsmall and large openings.

Features

One, two and three track sliding, Patio door and fly screen options
10 mm sash overlap for enhanced performance
Internal glazing options from 4 mm single to 22 mm double
Choice of single or multi - point locking devices
Hardware components fastened into steel or walls or uPVC
Durable Aluminium track and anti - lifttlevices as standard

COLOR COLLECTION

ENCRAFT Door & Window systems come in a variety of wood finishes to suit a range of interiors and exteriors lending grace and beauty to the architectural design. The available attractive wooden shades are:
